Product Description

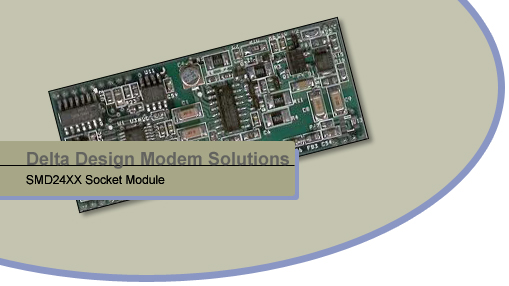

The SMD24XX MODEM MODULE is a complete modem
module that meets global telephone line requirements. Available
in a socket (64,5 mm x 26,5mm) size footprint, the device is ideal
for embedded modem applications due to its small board space, low
power consumption and global compliance. The device is available
in 5 different versions, ranging from V.92 down to V.22bis. The
module allows you to reduce time to market by using a ready to use
approved solution. |
|
Features
- Data modem formats ITU- V.92,V.90,V.34,V.32bis, V.32,
V.22bis, V.22, V.23, V.21,Bell 212A, 103
- V.23 Reversing
- Fast Connect V.21,V.22,Bell103, V.29
- Error Correction: ITU-V.42
- Data Compression: ITU-V.42bis
- Asynchronous Serial DTE interface
- Incoming call detection
- Caller ID detection and decode
- AT command set
- Call progress with programmable biquad filters
- Integrated DAA
Globally compliant line interface
Parallel handset (intrusion) detection
Overcurrent detection and protection
- 3V3 or 5V power supply (see feature table)
- Small Footprint
- Low power consumption
- Optional Eeprom for custom defaults and firmware upgrade.
(see feature table)
- Based on Silicon Laboratories isomodem solution
- SIA protocol (SMD2401 version)
|
|
Applications
- Security systems
- Point-of-sale verification systems
- Set top boxes
- Industrial /medical monitoring systems
- Power meters
- Remote monitoring
- Email Terminals
- ATM Terminals
Standard Compliance
Telecom
- Certified against latest European harmonized standards (ETSI
TS103021-1 V1.1.1 (2003-08), ETSI TS103021-2 V1.1.2 (2003-09),
ETSI TS103021-3 V1.1.2 (2003-09)
Safety
- IEC60950-1 compliant design
- Use of certified safety capacitors
EMC
Protection requirements with respect to electromagnetic compatibility:
|
|
PIN Function
| 1 |
Telephone Line TIP |
| 2 |
Telephone Line RING |
| 24 |
Reset Active low input |
| 25 |
NC |
| 26 |
GND |
| 27 |
NC |
| 28 |
NC |
| 29 |
DCD indicator, can drive LED anode (2mA) |
| 30 |
RXD indicator, can drive LED anode (2mA) |
| 31 |
DTR (ESC) indicator, can drive LEd anode
(2mA) |
| 32 |
TXD indicator, can drive LED anode (2mA) |
| 33 |
/RTS Request To Send |
| 34 |
/RXD Receive Data |
| 35 |
/TXD Transmit Data |
| 36 |
/RI Ring Indicator |
| 37 |
/INT Interrupt output |
| 38 |
/CTS Clear To Send |
| 39 |
/DCD Data Carrier Detect |
| 40 |
/DTR (/ESC) Data Terminal Ready |
| 41 |
GND |
| 61 |
Vcc Power Supply (5V or 3V3) |
| 62 |
NC |
| 63 |
GND |
| 64 |
AOUT analog output |
|
|
|
SMD24XX Modem Family Features
| Feature |
SMD2401 |
SMD2404 |
SMD2415 |
SMD2434 |
SMD2457 |
SMD2493 |
| Speed (bps) |
2400/2400 |
2400/2400 |
14400/14400 |
33600/33600 |
33600/56000 |
48000/56000 |
| Global Compliance |
X |
X |
X |
X |
X |
X |
| V.42 MNP2-4 |
|
X |
X |
X |
X |
X |
| V.42bis MNP5 |
|
|
X |
X |
X |
X |
| Fast Connect |
X |
X |
X |
X |
X |
X |
| Security Formats |
X |
|
|
|
|
|
| EEPROM (Optional) |
|
X |
X |
X |
X |
X |
| V.92 |
|
|
|
|
|
X |
|
|
Evalution Kit
A modem "motherboard" is available which
allows easy evaluation of the SMD24XX modem module. This board allows
the customer to connect the module to a PC via a standard DB-9 connector
and to the PSTN via a standard RJ11 modular connector. The motherboard
fits in a standard ABS housing. |
|
Ordering Information
| SMD2401-3V3-0 |
V.22bis modem 3V3 supply |
| SMD2401-5V-0 |
V.22bis modem 5V supply |
| SMD2404-3V3-M |
V.22bis modem 3V3 supply |
| SMD2404-5V-M |
V.22bis modem 5V supply |
| SMD2415-3V3-M |
V.32bis modem 3V3 supply |
| SMD2415-5V-M |
V.32bis modem 5V supply |
| SMD2434-3V3-M |
V.34 modem 3V3 supply |
| SMD2434-5V-M |
V.34 modem 5V supply |
| SMD2457-3V3-M |
V.90 modem 3V3 supply |
| SMD2457-5V-M |
V.90 modem 5V supply |
| SMD2493-3V3-M |
V.92 modem 3V3 supply |
| SMD2493-5V-M |
V.92 modem 5V supply |
| M: |
0 - No Eeprom
1 - Eeprom |
|
|
|
